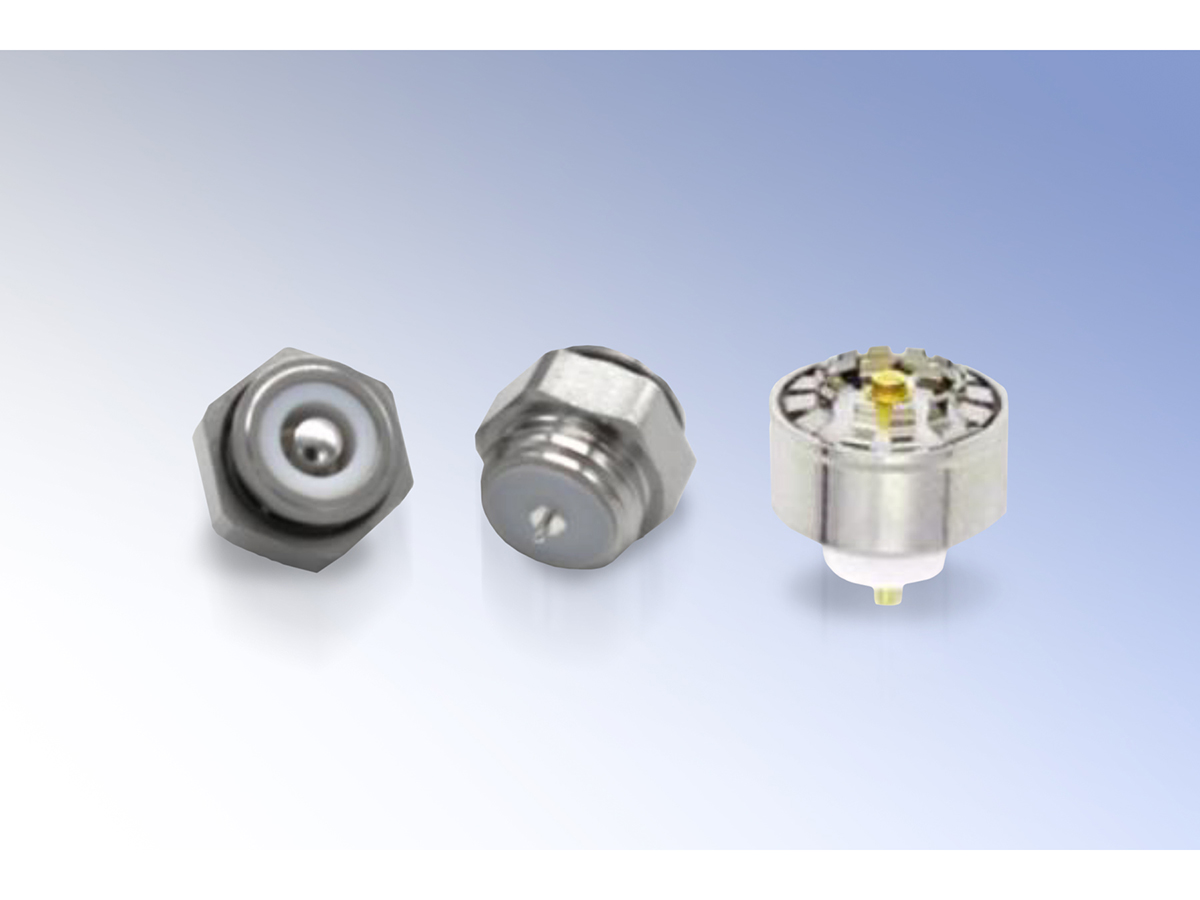

One-piece 2nd generation GDBC connectors from Gigalane

The simple one-piece design of the components enables a high integration and miniaturisation of board-to-board and board-to-module RF interconnections. GDBC series contacts are very easy to use in the assembly as they require no SMT. They offer the lowest total cost of ownership on the market and are an ideal solution for multiple connections and complex stack-ups in 5G systems.

Technical details of 2nd generation GDBC contacts include a frequency from DC up to 8.5 GHz, impedance of 50 Ω, insulation resistance of 5000 MΩ and a dielectric withstand voltage of 750 Vrms. VSWR is 1.12:1 at 3.0 GHz, 1.22:1 at 6.0 GHz and 1.35:1 at 8.5 GHz.
