Syslogic’s new AI rugged computer RML A4AGX

2nd May 2024

Syslogic GmbH

Harry Fowle

0 0

The AI Rugged Computer RML A4AGX is equipped with NVIDIA’s Jetson AGX Orin system on module. The Syslogic embedded system is purpose-built to take AI applications to new heights.

As a Preferred member of the NVIDIA Partner Network, Syslogic ensures that the concentrated power of NVIDIA Jetson is also available in vehicles, mobile machines and robots. The Rugged Computer RML A4AGX is certified for a temperature range of –25 to +60 degrees Celsius and is IP67/IP69 rated.

Latest NVIDIA System-on-Modules

The device is equipped with the latest member of the NVIDIA Jetson platform, the Jetson AGX Orin. The system on module offers up to 275 TOPS of AI processing power and a choice of 32GB or 64GB of RAM. The unique combination of a powerful CPU and an NIVIDIA Ampere architecture GPU opens the door to a new generation of autonomous machines and vehicles.

Developed for vehicles and mobile machinery

The Rugged Computer RML A4AGX is designed from the ground up for vehicles, autonomous machines and robots. Its interface layout allows it to be connected to a wide range of sensors. The RML A4AGX has eight GMSL2 camera inputs and four Ethernet interfaces via Power over Ethernet (PoE). Optional wireless functionality is available.

Syslogic embedded systems are often combined with stereo cameras from the specialist Stereolabs. Syslogic has recently entered into a partnership with this company. In addition to stereo cameras, Syslogic’s rugged computers can be coupled with other sensors such as lidar or radar. The systems can also be connected to a vehicle’s bus system via CAN, and real time kinematic (RTK) is optionally available using multi-band GNSS. This enables vehicles and machines to be located or positioned with centimetre-level accuracy.

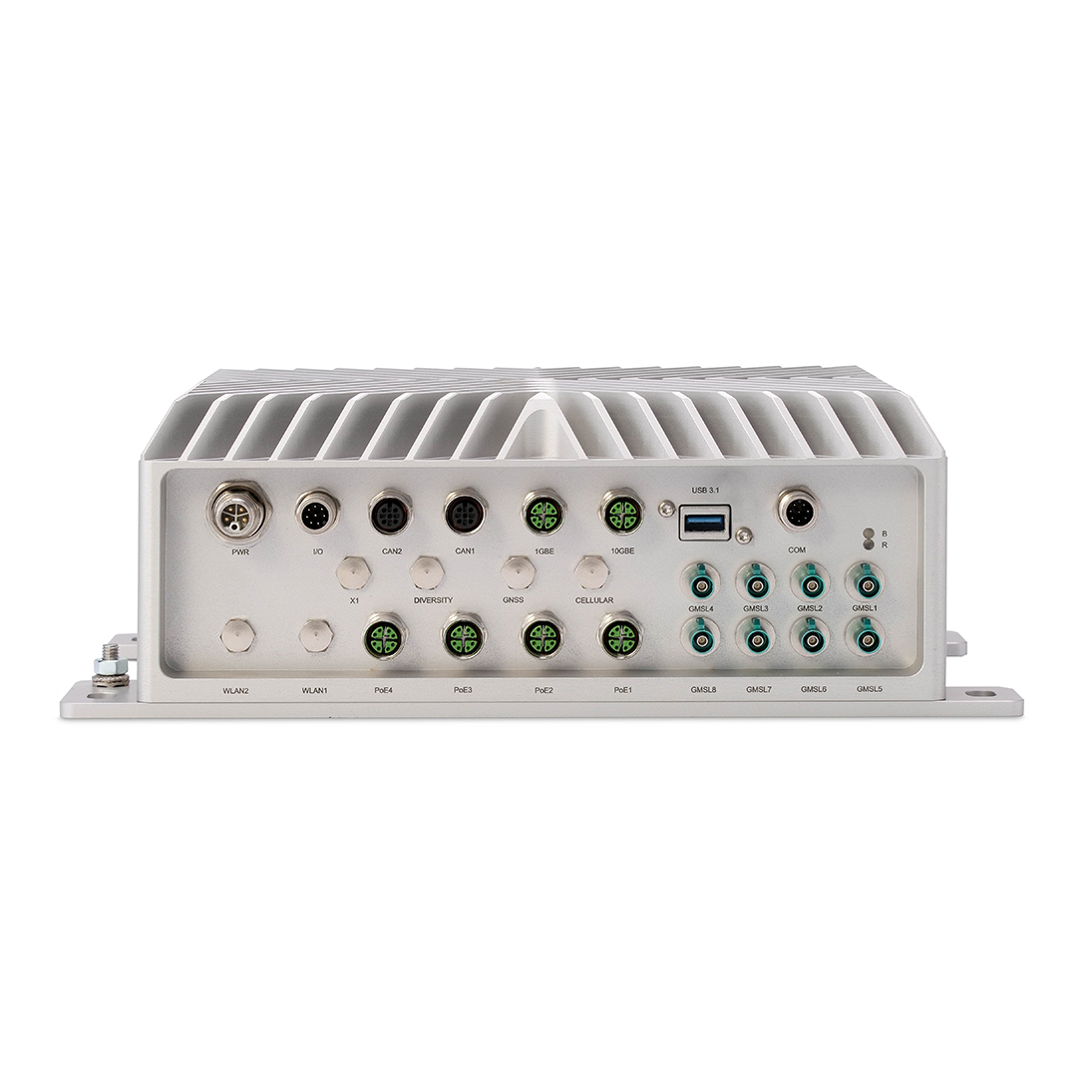

Technical specifications AI Rugged Computer RPC RML A4AGX

NVIDIA Jetson AGX Orin
1x 10Gbit Ethernet
1x Gbit Ethernet
8x GMSL2 camera inputs, with Power over Coax
4x 1Gbit PoE Ethernet
2x CAN 2.0A/B, CAN FD support, isolated (optionally up to 6 CAN ports available)
1x USB 3.1 (Type-A, IP67 rated)
4G LTE, GNSS & WiFi (optionally 5G available)
NVMe SSD storage up to 2TB (optionally 4TB and 8TB available)
