Telit Cinterion 5G RedCap modules now at Rutronik
5G RedCap has been launched on the market to close the gap between 4G and high-speed 5G, enabling improved connectivity and efficiency. Telit Cinterion is supplying the corresponding hardware with the 5G RedCap module FE910C04 and the M.2 card FN920C04 (Bagsize / Boxsize), which are now expanding Rutronik's wireless portfolio.
The robust, industry-standard modules are suitable for use in a range of applications from campus network applications to private and public 5G applications for Industry 4.0 routers.
5G RedCap, also known as NR RedCap (New Radio Reduced Capabilities), closes the mid-speed gap, making it perfect for corresponding use cases in the areas of logistics, smart home, machines, measuring devices, e-health, and industrial sensors. It improves performance and efficiency compared to LTE and promises maximum flexibility, enabling customers to make an easy transition to a secure 5G future.
The FE910C04 enables mid-speed 5G connectivity based on the latest 3GPP Release 17 RedCap technology. Its robust design boosts performance and efficiency, providing resilient and future-proof 5G connectivity for the most demanding IoT applications. It is part of the Telit Cinterion xE910 flagship module family and offers 5G NR radio access technology in the product family's 28.2 x 28.2 x 2.2mm form factor.
The xE910 family products – available for 2G, 3G, and 4G – have a uniform form factor and common electrical and programming interfaces, allowing developers to implement a ‘design once, use anywhere’ strategy.

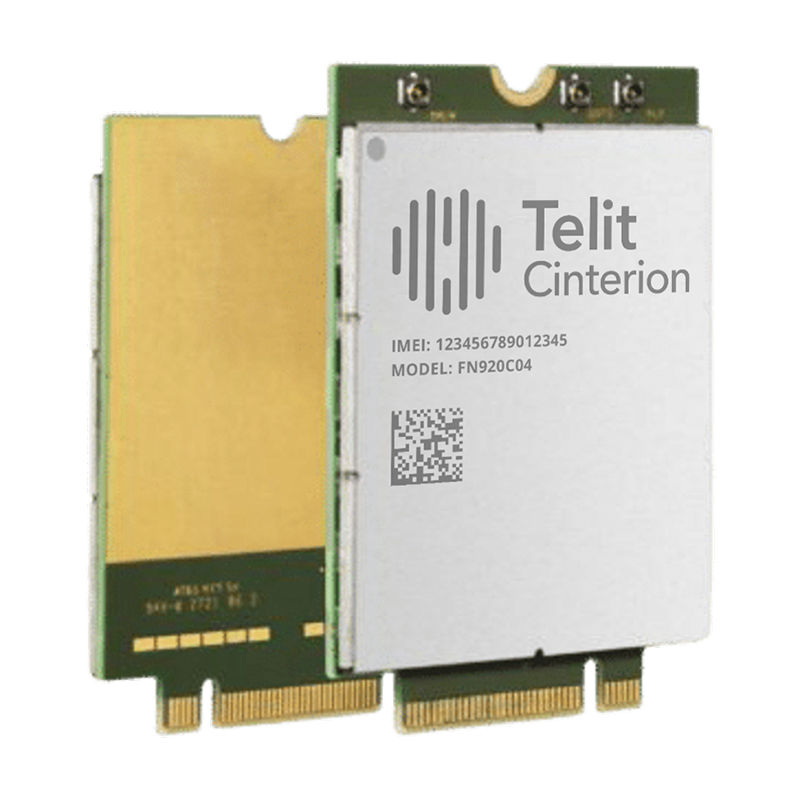

The M.2 data card FN920C04 enables mid-speed 5G connectivity and is based on the latest 3GPP Release 17 RedCap technology. It is industrial-grade (–40°C to +85°C), rugged, suitable for worldwide use, and features improved uplink performance, power-saving capabilities, and LTE Cat 4 fallback for optimal network coverage.
The module and M.2 card improve operational efficiency and provide accurate GNSS positioning by supporting L1 and L5 frequencies, complemented by a dedicated antenna connector. The integrated processing capabilities enable full activation of connectivity supported by the Telit Cinterion OneEdge platform. In addition, these modules are equipped with integrated security features to protect the devices and ensure secure communication between the device and the cloud.
Global and regional stocking units (SKUs) are available to ensure maximum design adaptability and an extended product life with 5G technology.
Benefits at a glance:
- NR RedCap Rel 17
- ‘SA only’ technology, fallback required for the initial phase
- Throughput ~220Mbps / 100Mbps (DL/UL) for 5G Sub.6 FDD and TDD operation in 5G NR standalone
- Support 20MHz RF bandwidth for all channels
- One or two antennas half-duplex
- VolTE / VoNR support
- Integrated UDP/TCP/FTP/SMTP stack
- IPv4 / IPv6 stack
- Simultaneous support for GPS, GLONASS, Beidou, Galileo, QZSS
- Optional eSIM
- Energy saving: RRM relaxation and eDDRX support
Application examples:
- Video surveillance and monitoring
- Industrial routers and gateways
- Charging infrastructure for electric vehicles
- Connected healthcare
