Power Management

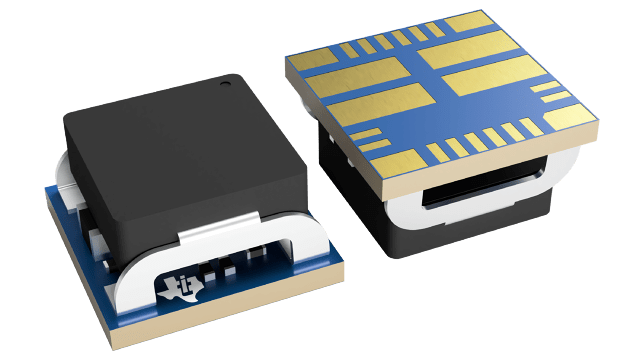

TPSM84424MOLR
Texas Instruments
Price range: $3.64 - $14.98
Category: Power Management
4.5V to 17V Input, 0.6V-10V Output, 4A Power Module in Compact 7.5x7.5mm Footprint 24-QFM -40 to 105
TPSM84424MOLR Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
Parameters
Iout(Max)(A)
4
Vin(Min)(V)
4.5
Approx. price(US$)
3.2 | 1ku
Operating temperature range(C)
-40 to 105
Rating
Catalog
Switching frequency(Max)(kHz)
1600
Type
Module
Package size
mm2
Vin(Max)(V)
17
Topology
Buck,Synchronous Buck
Duty cycle(Max)(%)
75
Features
EMI Tested,Enable,Frequency Synchronization,Power Good,TurboTrans
Regulated outputs(#)
1
Switching frequency(Min)(kHz)
200
Vout(Max)(V)
10
Vout(Min)(V)
0.6
Iq(Typ)(uA)
19000
Switching frequency(Typ)(kHz)
450
Soft start
Adjustable
Features
Part Family
TPSM84424
Status
ACTIVE
ROHS
Not Compliant
PB Free
Y
