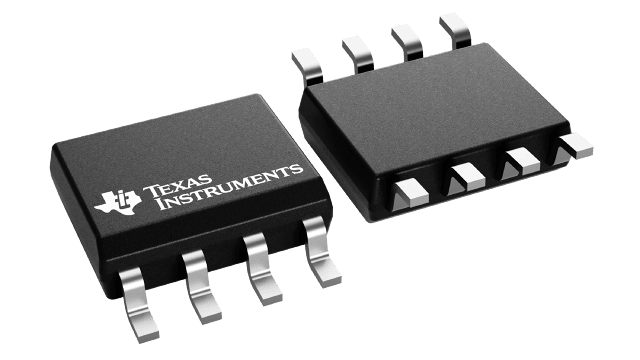

UCC5390ECDWVR
Texas Instruments
Price range: $1.26 - $2.97
Category: Isolation
10A/10A Single-Channel Isolated Gate Driver for Bipolar Supply (E) or With Split Output (S) 8-SOIC -40 to 125
UCC5390ECDWVR Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
DigiKey
UCC5390ECDWVR
5028
$2.97
Parameters
Power Switch
IGBT
Output VCC/VDD(Max)(V)
33
Output VCC/VDD(Min)(V)
13.2
Input Threshold
CMOS
Package Group
SOIC|8,SOIC|8
Input VCC(Min)(V)
3
DIN V VDE V 0884-10 Transient Overvoltage Rating(Vpk)
4242,7000
Fall Time(ns)
10
Features
Split Output,UVLO referenced to GND2
Bus voltage(Max)(V)
2121
Prop Delay(ns)
65
Rating
Catalog
Operating Temperature Range(C)
-40 to 125
Package Size
mm2
DIN V VDE V 0884-10 Working Voltage(Vpk)
990,2121
Peak Output Current(A)
17
Rise Time(ns)
10
Enable/Disable Function
N/A
Prop Delay(Max)(ns)
100
Number of Channels(#)
1
Approx. price(US$)
1.05 | 1ku
Input VCC(Max)(V)
15
Isolation Rating(Vrms)
3000,5000
Features
Part Family
UCC5390
Status
ACTIVE
ROHS
Compliant
PB Free
No
