Power Management

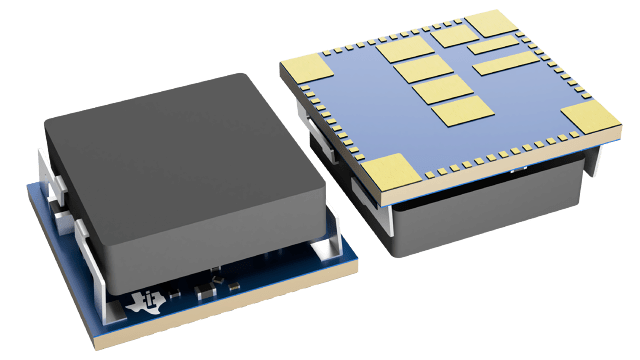

TPSM846C24MOLR
Texas Instruments
Price range: $14.93 - $37.49
Category: Power Management
4.5V to 15V Input, 0.35V to 2.0V Output, 35A Power Module 59-QFM -40 to 105
TPSM846C24MOLR Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
DigiKey
TPSM846C24MOLR
980
$23.54
Parameters
Iq(Typ)(mA)
55
Duty cycle(Max)(%)
83
Vin(Min)(V)
4.5
Approx. price(US$)
13.00 | 1ku
Switching frequency(Typ)(kHz)
500
Operating temperature range(C)
-40 to 105
Type
Module
Vout(Min)(V)
0.5
Vout(Max)(V)
2
Package type
QFN
Iout(Max)(A)
35
Switching frequency(Max)(kHz)
1000
Features
Current Sharing,EMI Tested,Enable,Frequency Synchronization,Output Discharge,Power Good,Remote Sense
Regulated outputs(#)
1
Switching frequency(Min)(kHz)
300
Soft start
Fixed
Package size
mm2
Vin(Max)(V)
15
Features
Part Family
TPSM846C24
Status
ACTIVE
ROHS
Not Compliant
PB Free
Y
