Isolation
UCC21220DR
Texas Instruments
Price range: $0.00 - $11.89
Category: Isolation

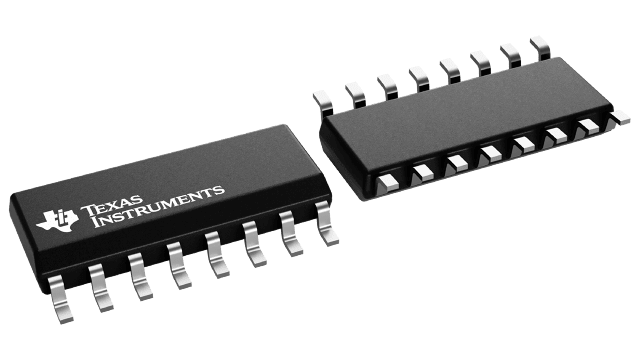

MOSFET and IGBT Driver 6A 2-OUT Hi/Lo Side Inv/Non-Inv 16-Pin SOIC T/R
UCC21220DR Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
DigiKey
UCC21220DR
4455
$2.96
Parameters
Prop delay(Max)(ns)
40
Input VCC(Min)(V)
3
Rating
Catalog
Enable/disable function
Disable
Package size
mm2
Features
Disable
DIN V VDE V 0884-10 working voltage(Vpk)
990
Output VCC/VDD(Max)(V)
18
Prop delay(ns)
28
Approx. price(US$)
1.80 | 1ku
DIN V VDE V 0884-10 transient overvoltage rating(Vpk)
4242
Power switch
MOSFET,IGBT,GaNFET
Bus voltage(Max)(V)
990
Input threshold
TTL,CMOS
Isolation rating(Vrms)
3000
Package Group
SOIC|16
Input VCC(Max)(V)
5.5
Number of channels(#)
2
Output VCC/VDD(Min)(V)
9.2
Fall time(ns)
6
Peak output current(A)
6
Operating temperature range(C)
-40 to 125
Rise time(ns)
5
Features
Part Family
UCC21220
Status
ACTIVE
ROHS
Compliant
PB Free
No
Products to complete your design
UCC27201 120V Boot, 3-A Peak, High Frequency, High-Side/Low-Side Driver
UCC28950 Green Phase-Shifted Full-Bridge Controller with Synchronous Rectification
TPS7A8300 2A, Low-Dropout Voltage Regulator for High Speed Communication Systems
UCC27524A Dual, 5A, High-Speed Low-Side Power MOSFET Driver, with Negative Input Voltage Ability
V-Ref Precision 1.5V/3V 20mA 5-Pin SOT-23 T/R
NOR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube
UC2845AQ Automotive Catalog Current-Mode PWM Controller
MOSFET DRVR 4.5A 2-OUT Hi/Lo Side Non-Inv 8-Pin VSON T/R

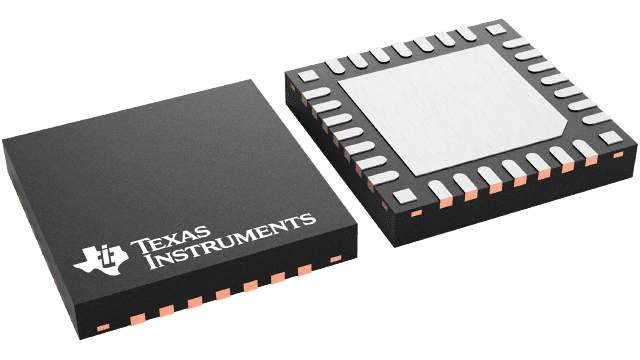

Half-bridge PWM controller with integrated auxiliary bias supply and regulated pre-biased start-up 28-WQFN -40 to 125
