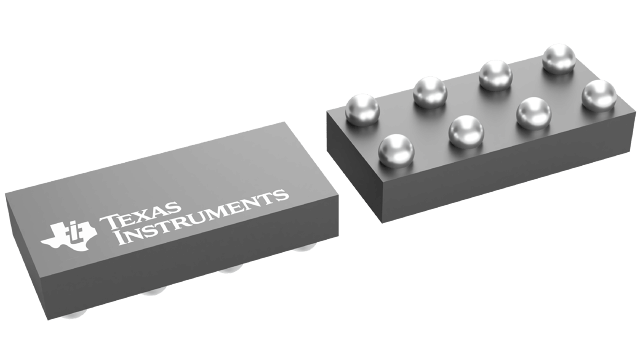

TS5A6542 0.75-Ohm SPDT Analog Switch With Input Logic Translation
TS5A6542YZPR Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
Parameters
ESD HBM(kV)
4
Digital input leakage(Max)(uA)
0.02
Turn off Time (Disable)(ns)
25
Turn on Time (Enable)(Max)(ns)
35
OFF-state leakage current(Max)(?A)
0.1
ICC(Max)(uA)
0.75
Operating Temperature Range(C)
-40 to 85
Charge Injection(Max)(pC)
15
Input/Output Continuous Current(Max)(mA)
100
Ron(Typ)(Ohms)
0.5
Ron(Max)(Ohms)
1.6
Rating
Catalog
THD(Typ)(%)
0.008
Mux Configuration
1
Off Isolation(Typ)(dB)
-63
VIH(Min)(V)
1.07
Approx. Price (US$)
0.37 | 1ku
Input/Output ON-state Capacitance(Typ)(pF)
133
Input/Ouput Voltage(Min)(V)
0
Input/Ouput Voltage(Max)(V)
5.5
Package Group
DSBGA
Number of Channels(#)
1
ESD Charged Device Model(kV)
1
RON Flatness(Max)(Ohms)
0.6
Additional Features
Break-before-make,Low Harmonic Distortion,Low Power
THD(Typ)(dB)
-87.96
VCC(Max)(V)
5.5
Crosstalk(dB)
-63
Input/Output OFF-state Capacitance(Typ)(pF)
38
Bandwidth(Max)(MHz)
43
VIL(Max)(V)
1.9
VCC(Min)(V)
2.25
Configuration
1
Bandwidth(MHz)
43
Ron Channel Match(Max)(?)
0.2
ON-state leakage current(Max)(?A)
0.2
Features
Part Family
TS5A6542
Status
ACTIVE
ROHS
Yes
PB Free
Yes
