Analogue IC supplier joins Mouser global linecard

Richtek’s portfolio includes data converters, amplifiers, voltage regulators, gate drivers, power management ICs, and associated development tools.

These components can be found improving the performance of consumer electronics, computers, communications equipment, industrial products and automotive applications.

The Richtek RD0004 load transient tool is designed to verify the pulse load behavior of voltage regulators.

It can generate very fast load steps, enabling the device to check DC/DC converter stability, layout resonance, input supply ringing and more.

Seven different pulse load resistors can be selected via jumpers, and an adjustable power resistor is used for setting the static load level. Pulse load frequency and duty cycle can be adjusted via push buttons.

The tool can also be used for testing low dropout regulators and boost and buck-boost converters. It is battery-powered, which makes it easy to apply at any point in an application.

The RT6190 is a versatile bi-directional Buck-Boost controller designed to provide USB-PD functionality for a wide range of applications, such as power banks, USB-PD chargers, car chargers, e-bikes and solar applications.

The device can operate with a wide input voltage range of 4.5 V to 36 V, and the output voltage can be programmable between 3V and 36V.

With an I²C-compatible interface, the RT6190 supports many programmable functions, including CV/CC output, switching frequency, and cable voltage drop compensation.

The RTQ6052 is a high-side current-shunt monitor that integrates a current-sense amplifier, bandgap reference, and a comparator with latching output.

This industrial-grade monitor senses drops across shunts at common-mode voltages from 2 V to 80 V and supports a 100 V/V output voltage scale. It is suitable for servers, network equipment, portable, battery-powered devices, and point of load (POL) power modules.

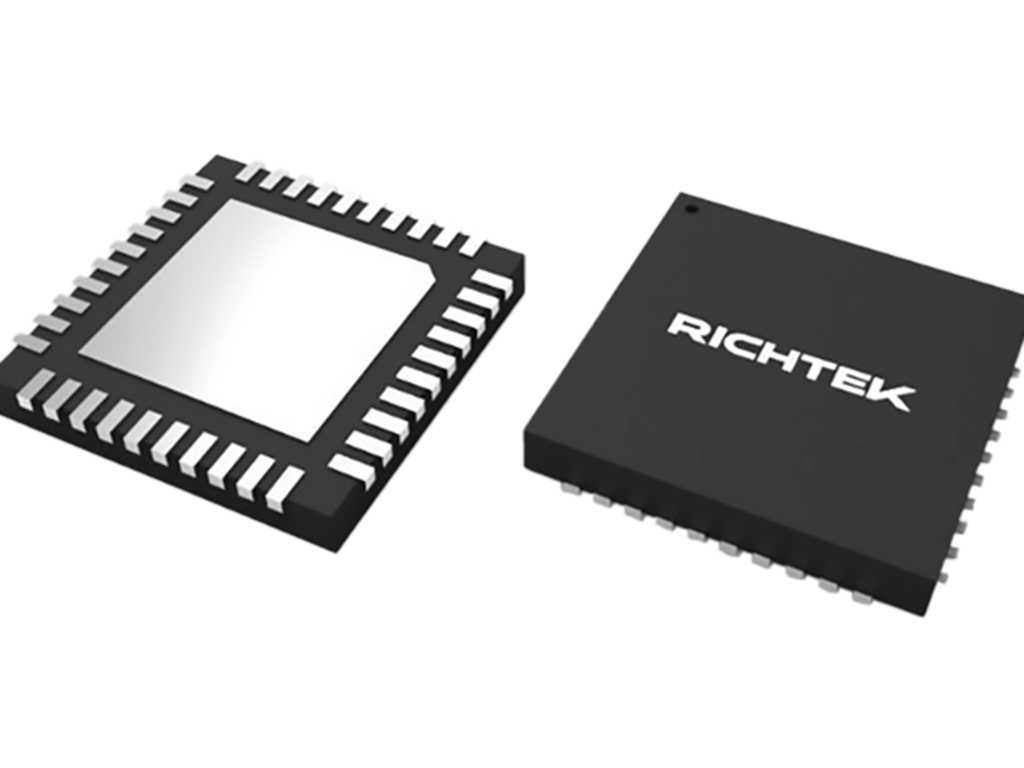

The RT9069 low-dropout voltage linear regulator offers the benefits of high input voltage, low-dropout voltage, low-power consumption and miniaturized packaging.

The features of low quiescent current as low as 2 μA and zero disable current are ideal for powering the battery equipment to a longer service life.
