Safety modules accelerate incident resolution

These modules minimize machine downtimes with comprehensive and easy-to-understand diagnostics.

Suitable for use in harsh environments, the modules allow for faster resolution of safety incidents in process industry and maritime machinery applications.

They meet stringent safety standards for reliable performance in a variety of industrial settings.

The modules are TÜV, UL, and CSA certified and have several advanced approvals in preparation, including ATEX zone 2, heat treatment (EN 746, EN 298, and EN 50156), and UL Class 1, Div. 2.

They operate effectively in a temperature range of -10ºC to +70ºC and feature corrosion protection with additional conformal coating on the printed circuit board.

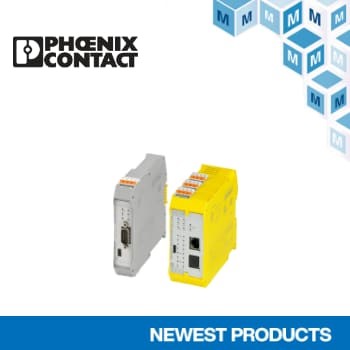

The configurable PSRmodular XC small-scale controllers can monitor multiple safety functions within a single application. The modules can also be easily adapted to meet increased input/output port requirements, making them a versatile solution for expanding industrial needs.

If there are not enough I/Os, the system can be extended on a modular basis with up to 18 safety-related extension modules. The additional modules are simply connected to the base module via the DIN rail connector.

This provides extra I/Os for connecting more sensors and actuators.

The PSRmodular XC safety modules can be easily configured using the PSRmodular software, requiring no programming skills. Users can set up the safety logic graphically with a drag-and-drop interface.
