PCB production system meets miniaturisation trend

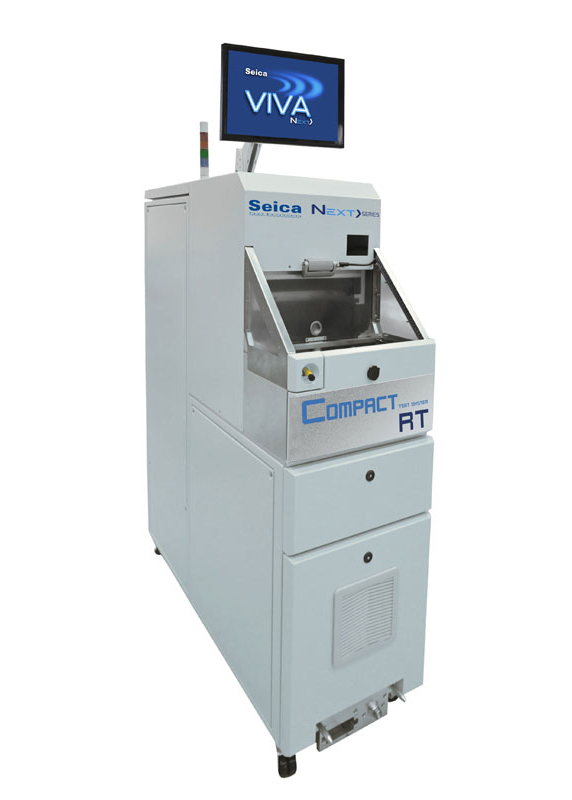

The 450mm wide COMPACT RT has been designed to allow immediate in-line robot integration to reduce the impact of part loading and unloading times.

In either case, the system can operate in automatic mode (by robot/cobot) or manual mode (by operator). The rotary table offers the advantage of saving loading/unloading time: while the UUT is being tested, the next UUT can be loaded into the empty slot.

The versatility and modularity of the NEXT> SERIES allows different concepts of automated handling lines to be implemented: more systems can be aligned or placed in a circle. The NEXT> SERIES is the new generation of Seica systems with a renovated and sleek look thanks to new materials for the chassis. Like any other Seica solution, the COMPACT RT uses the NEXT> platform, whose main feature is the possibility to deliver the best integration of technology and easiness of use.

It is possible to combine the following test solutions:

• ICT (In Circuit Test): Open/Short, R/L/C, Diodes, Transistors, FETs, regulators, etc.

• Functional testing This is possible thanks to the cutting-edge measurement system (based on ACL proprietary module) and to the VIVA management software. The ACL module contains the measurement and stimuli internal instruments. The DSP technology integrates all of the testing capabilities while enabling the fully-automated test execution. The user can deploy an intuitive graphical software conceived for compiling and running functional tests: Quick Test.

The COMPACT RT has been designed to provide immediate in-line integration, since any element which made it incompatible with robotized lines from a mechanical point of view has been reduced. To ensure easiness of use and to facilitate the approach to DUT loading/unloading operations are available 2 modes of operation:

• With operator:the operator loads the UUT manually, and then the test sequence is executed automatically.

• With ROBOT / COBOT: the loading/unloading procedures are managed automatically by the ROBOT/COBOT, and then the test sequence is executed automatically.

The machine features a Radio Fixture Identifier Option (RFID), which allows the automatic control through unique identification codes for the proper combination of fixture, Castle and test program in ICT automatic tester, preventing any possibility of error in the system setting.

The rotary table concept satisfies applications that require high throughput to reach the maximum productivity in an automatic in-line process. While the ROBOT/COBOT is loading one UUT, a second one is under test. The fixture adapter is a dedicated hardware customized for the specific product and can be easily interchanged for different devices.

Moreover, the small sizes make the fixture handling easier for the operators and for storage purposes. Indeed the fixture storage costs are drastically reduced. The fixture-receiver interface blocks used are the configurable “Pylon™ connector units” that offer a strong reliable contact quality.
