MultiGBASE-T1 for automotive Ethernet interfaces

Users can configure the Vector Ethernet interfaces initially or simply extend their interfaces to MultiGBASE-T1 via new physical layer modules, facilitating simulation, analysis and tests for multi-gigabit applications.

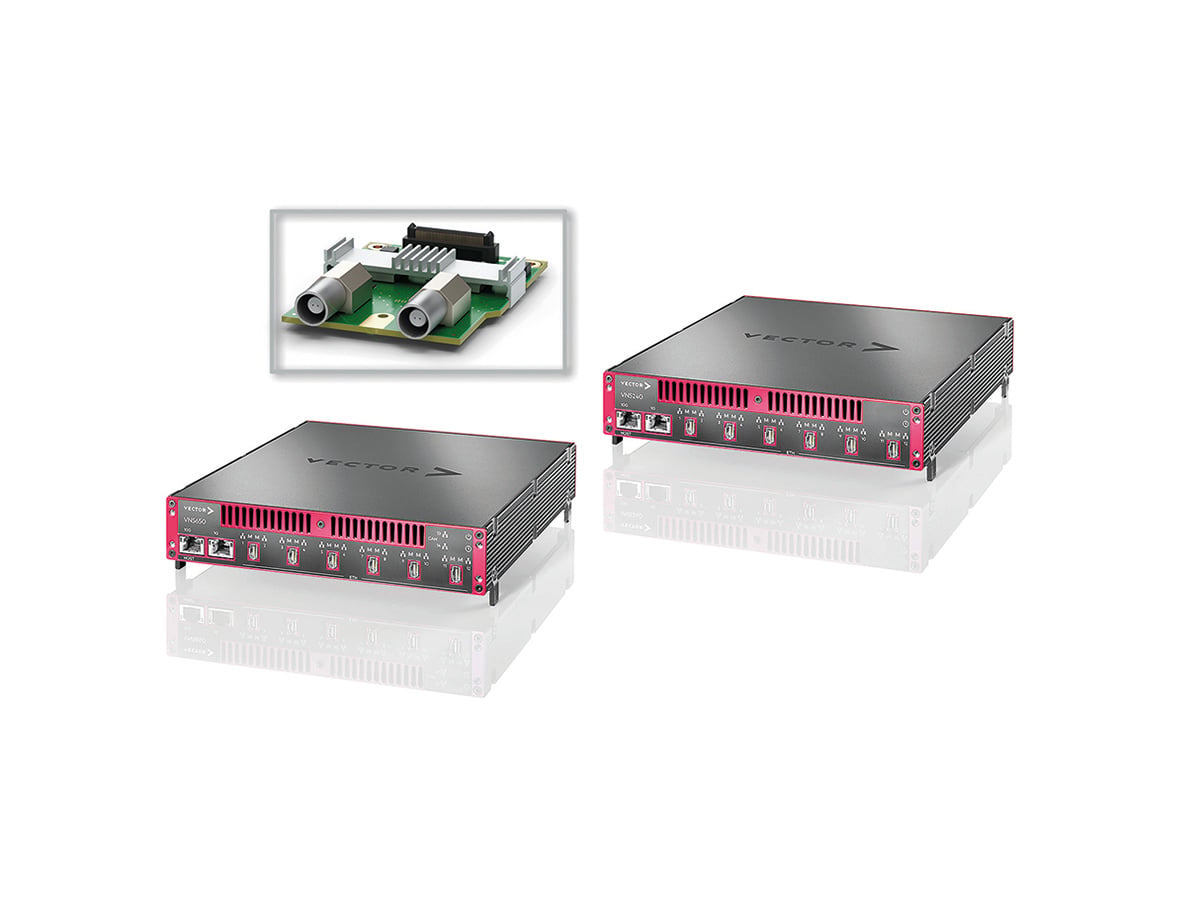

A suitable physical layer module (VNmodule60) for the two Vector interfaces VN5650 and VN5240 provides users with MultiGBASE-T1 support.

The MultiGBASE-T1 ports are freely configurable in the speeds 2.5GBASE-T1, 5GBASE-T1 and 10GBASE-T1. Thanks to the switches and TAPs available in the interface, the ports can be flexibly combined with other Ethernet standards. This enables simple media conversion from standard Ethernet to MultiGBASE-T1.

The Ethernet uplinks with 10GBASE-T or USB3.0 already available on the VN5650 interface connect the Vector tools to the MultiGBASE-T1 network.

In future, the VN5650 interface will support MACsec and OPEN Alliance TC10 (Wake/Sleep) for data streams in the multi-gigabit range via a software update.

The new physical layer module for MultiGBASE-T1 completes the flexible support of all relevant Automotive Ethernet physical layer standards from 10BASE-T1S to 100BASE-T1 and 1000BASE-T1. The modular design of the Vector interfaces VN5650 and VN5240 offers a flexible combination of all these standards.
