Rugged push-button HMIs with integrated cables and rear sealing

The new cabled versions of EAO’s popular Series 82 pushbutton switches are available with a choice of a 200 mm straight or 90° offset cable. They provide significant advantages in terms of mounting flexibility as they can be optimised for a wide variety of application and mounting scenarios simply by selecting the appropriate connector.

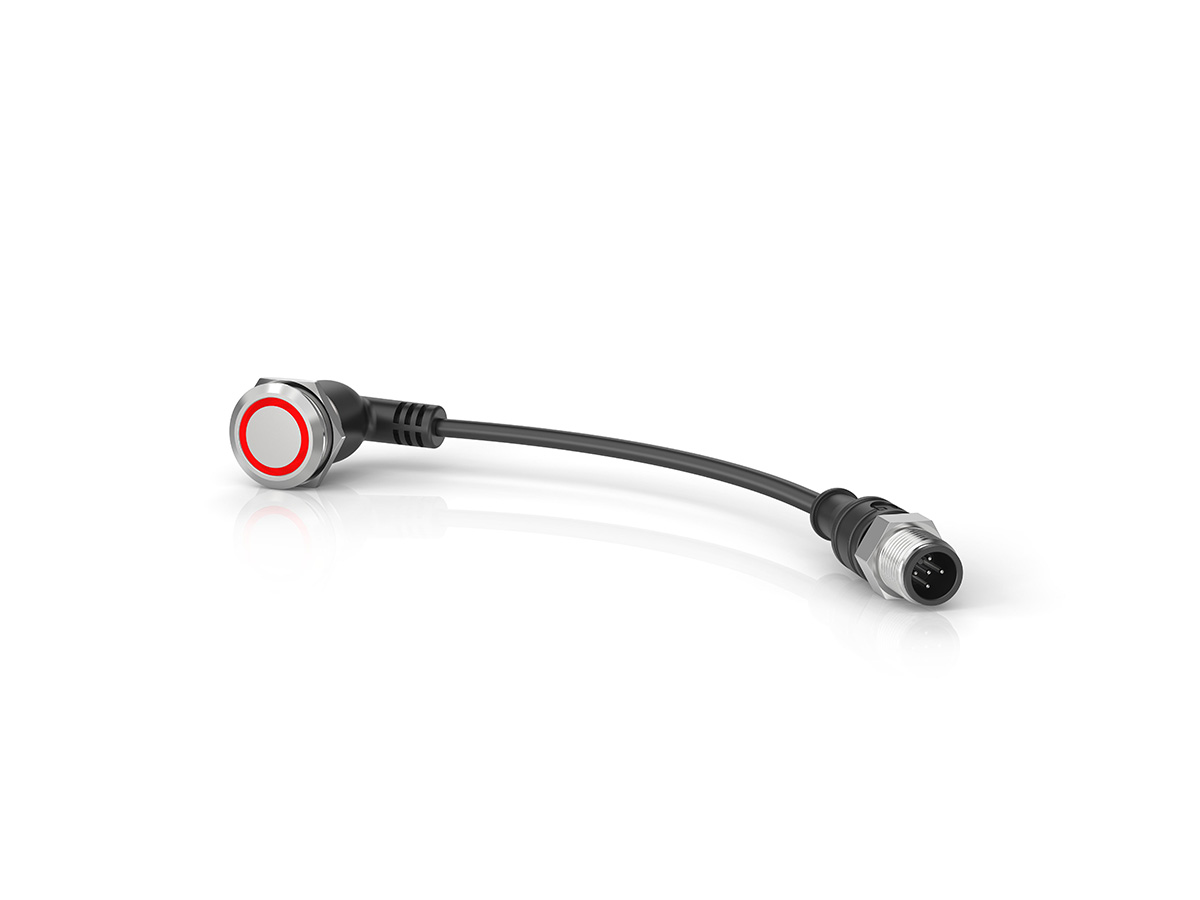

Variants with the 90°- offset cable exit point are particularly useful in machinery with low-depth back panels. The cable version with M12 connector is impressively robust and easy to mount and targets demanding machinery applications. The cable version with tin-plated cable though offers R118 certification, making it ideal for HMI applications in heavy-duty and special-purpose vehicles. All the new devices feature rear over-moulding and IP67 protection as standard while SUS 316L stainless steel casing and enhanced vibration-resistance are available options.

Typical applications

• Food and beverage industry
• Machinery and production facilities
• Heavy-duty and special-vehicles
• Passenger transportation systems and busses
• Access control and security systems
• Ticketing and vending machines

According to Robert Davies, Marketing Manager with EAO Ltd, pushbutton switches and indicators are often exposed to extremely harsh operating conditions: “In the food and beverage industry for example harsh alkaline cleaning agents often cause corrosion problems”, Davies said. “Other external factors such as hard-to-remove dirt, fine dust, severe vibrations and blunt impacts can also severely reduce the reliability and lifetime of HMIs. The new additions to the Series 82 family of push-button switches are ideal for use in the most challenging environments”.
