Industrial edge AI platform offers wide I/O capabilities

These specially designed systems can support up to two of the latest Ada Lovelace generation NVIDIA RTX 4080 graphics cards, offering exceptional compute performance for GPU-accelerated Edge AI applications such as autonomous driving, vision inspection, and intelligent video analytics.

Powered by the Intel 13th Gen Core i9/i7/i5/i3 processor family, the Intel R680E chipset supports up to 64GB of DDR5 4800MHz memory with additional support for ECC memory for mission-critical applications. Additionally, the Nuvo-10208GC supports TPM2.0 and AMT for remote management and comes with a selection of high-speed I/O including:

• 6x 10Gbps USB3.2 Gen2 ports.
• 2x COM ports supporting RS-232/422/485 serial signals.
• 2x 2.5Gigabit Ethernet ports for real-time communication.
• 1x Gigabit Ethernet port.

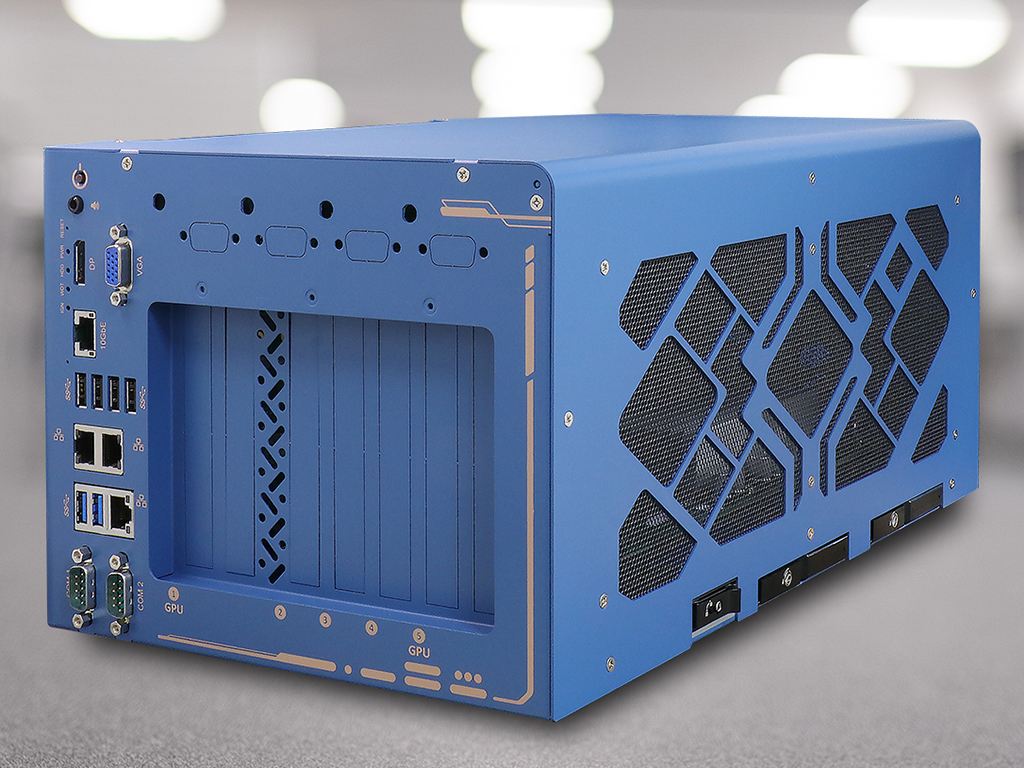

The Nuvo-10208GC is an industrial Edge AI system designed around supporting the two 350W graphics cards and has two PCIe Gen 4 x16 slots supporting eight lanes each, with additional expansion options available via three PCIe Gen 3 slots supporting four lanes as well as two Mini PCIe sockets with SIM, and 1x M.2 2242/3052 B-key socket with SIM.

The Industrial-grade Edge AI Platform includes Neousys' proven heat dissipation design, ensuring that both the CPU and GPU can offer 100% performance in temperatures of up to 60°C.

Patented damping brackets also ensure the system can withstand up to 3Grms of vibration and a wide-range 8 to 48V DC power input, making the Nuvo-10208GC suitable for a variety of demanding industrial applications and environments.

In common with all embedded computing ranges available from Impulse Embedded, the Nuvo-102088GC can be supplied and configured to the customer’s exact specifications in their UK-based engineering facility with a choice of processor, memory, storage, peripheral cards, and operating system.
