Fanless systems for industrial applications

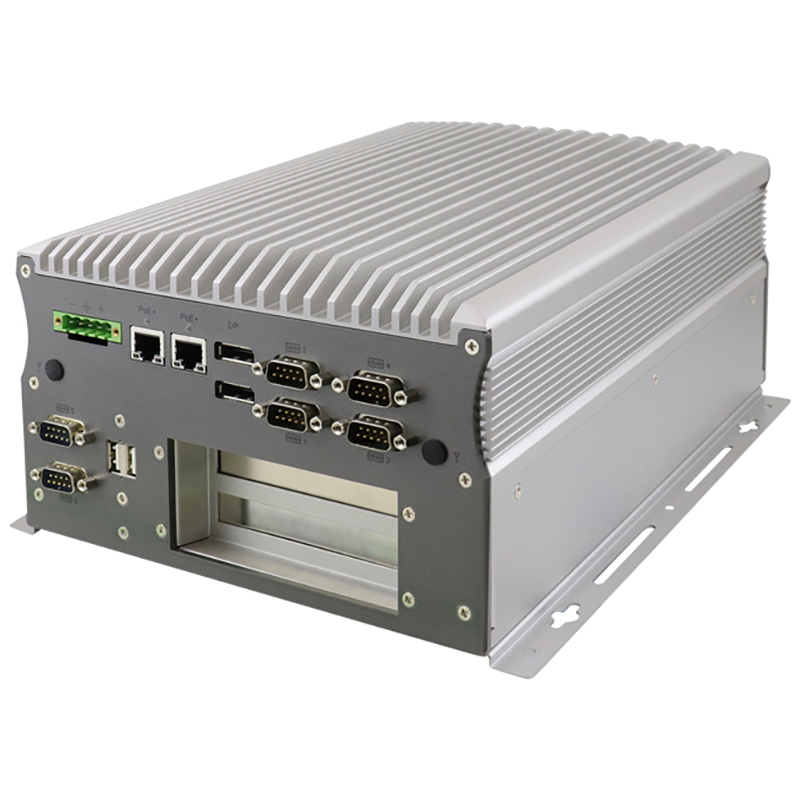

Designed to meet the rigorous demands of industrial applications, the AMI242 combines robust performance, versatile connectivity, and exceptional reliability in a fanless design.

The AMI242 features the proprietary IBASE MBE240 board, supporting the latest 14th/13th Gen Intel Core i9/i7/i5/i3 35W TDP desktop processors. It has two DDR5 SO-DIMM sockets, allowing up to 64GB of memory for seamless multitasking and enhanced system responsiveness. The AMI242AFM model features the MBE240AF motherboard with Intel Q670E PCH, supporting non-ECC memory, while the AMI242AFM-R model uses the MBE240AF-R board with Intel R680E PCH and ECC memory support.

The fanless system offers comprehensive connectivity options, including two Intel 2.5G LAN ports, two Intel GbE ports supporting 802.3at PoE+, and three M.2 sockets (M-Key/B-Key/E-Key) for expandability and customisation. It also supports PCI Express Generation 5 for one PCI-E (16x) expansion slot, ensuring high-speed data transfer for various peripherals.

The AMI242 includes over/under/reverse voltage protection and operates within a wide temperature range of –20°C to 70°C, making it ideal for industrial automation, smart retail, and medical environments. It also features dual SIM slots for WWAN redundancy, iAMT (16.1), and TPM (2.0). Extensive front and rear panel I/O options include multiple USB ports, HDMI outputs, RJ-45 ports, antenna holes, and expansion slots. The system supports RAID 0/1 configurations with two 2.5” storage options, enhancing its data storage capabilities. The PCI-E slot with the IP218 expansion card supports the latest PCI-E Gen.5 bandwidth of 32GT/s, allowing high-end graphics cards and other high-speed peripheral cards.

AMI242 features:

• Fanless system with IBASE MBE240 proprietary board
• 14th/13th Gen Intel Core desktop processors
• Supports DDR5-5600 memory, up to 64GB Max. (ECC is optional)
• 2x Intel 2.5G LAN, 2x Intel GbE (Support 802.3 at PoE+), 3x M.2 sockets (M-Key/B-Key/E-Key)
• Supports PCI Express Generation 5 for 1x PCI-E(16x) expansion slot
• Supports Over/Under/Reverse voltage protection
• Dual SIM slots support WWAN redundancy, iAMT (16.1), TPM (2.0)
• 2x 2.5” Storage (supports RAID 0/1)
