Exascend introduces industrial rugged PCIe Gen3 and SATA3 SSD

Exascend PI3 (PCIe Gen3x4) product series are Industrial grade (-40°C - 85°C operating temperature) SSD with enterprise performance features (sustain high speed and low latency) available in standard U.2 up to 8TB, M.2 2280 up to 4TB. Legacy part such as SI3 Series (industrial SATA3) are still available with capacity up to 4TB and will be a long-term support item.

Design and optimised for industrial and rugged applications, where unpredictable operating environment, wide temperature fluctuations, thermal and airflow restrictions pose significant design challenges for small form factor, especially when SATA3 is migrating to high performance PCIe NVMe SSDs; PI3 series products are suitable for incoming merge of AI in IoT, edge server storage, transportation, telemetry, autonomous driving, high speed video capture and data logging, and other emerging high performance rugged data storage applications where traditional single tasking is now required to do on site multi-tasking and complex high level analytical algorithms.

“The new generation of industrial applications requires lower latency, consistent QoS, and ever increasing sustained high performance under all operation conditions. PI3 SSD product innovates by fusing Exascend enterprise performance storage with proprietary thermal management technology and extended temperature support. With the introduction of our rugged PCIe SSD for rugged applications,” said Exascend, CEO Frank Chen.

“Exascend is very proud in achieving a significant milestone for the global storage industry. The accelerating trend of Flash adoption for rugged applications, industrial automation, edge computing has called upon service focused companies like Exascend to deliver enterprise performance solutions under wide temperature operating conditions - two conflicting requirements by conventional perceptions. By leveraging our deep expertise in SSD technology, Exascend is able to accomplish both requirements simultaneously and advance our mission to push the boundary of possibilities.”

Hardware-based AES 256 Encryption Engine with TCG OPAL 2.0 support

Both PI3 and SI3 series products support TCG Opal 2.0, using hardware encryption technology to secure data stored. By encrypting the entire drive, users do not need to worry about their data being accessed if the drive, laptop, or mobile device is stolen or lost.

In addition to standard PCIe NVMe and SATA3 features set, Exascend products are engineered with innovative features and optimisations based on proprietary technologies for rugged applications.

Exascend Adaptive Thermal Control

Exascend’s patented algorithm continuously monitors drive thermals, and regulates drive performance to improve SSD reliability, simultaneously enhancing sustained performance and quality of service (QoS) by 10X. Belowa couple examples of performance benchmark in thermal chamber simulating operation temperature under wide temperature range.

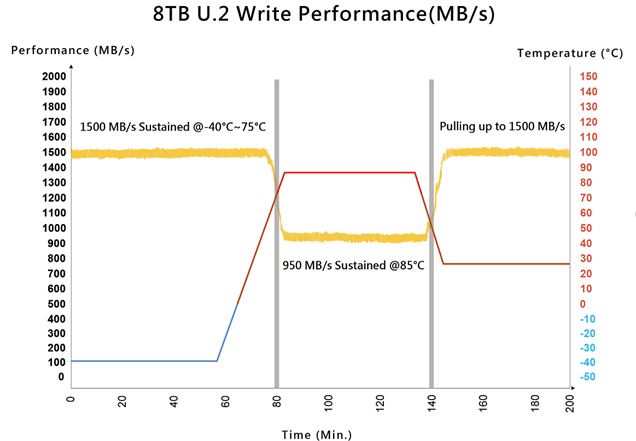

Exascend’s 8TB U.2 provides sustained write performance at 1,500MB/s in temperature range from-40C~75C, and sustained write at 950MB/s under high temperature 75C~85C.

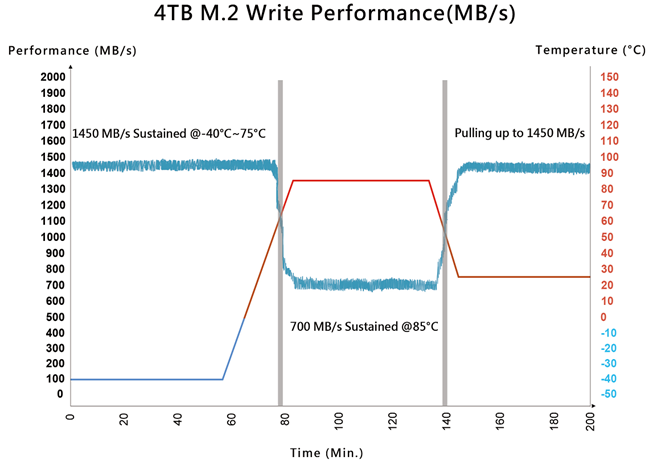

M.2 is far more challenging as thermal-dissipation is very limited in such small form factor, the higher the capacity, the more difficult it gets. Nevertheless, Exascend’s 4TB M.2 can provide a 1,450MB/s sustained write under -40C~75C, 700MB/s sustained write at 75C~85C.

SATA3 is a very matured product in the market, peak performance to reach up to 500MB/s is already a standard specification, but to offer a straight line sustained write at 500MB/s under wide temperature range is Exascend’s in-house firmware know-how.

Exascend Accelerated Boot

Exascend recognise system responsiveness is a critical aspect of user experience, high capacity Flash storage may take minutes to respond after power cycle, negatively impacting responsiveness. Accelerated boot is the company's unique technology, by streamlining initialisation to prioritise system response, and layering initialisation to allow background error correction and recovery, achieving near instantaneous drive response upon power on, reducing boot time from minutes to seconds, dramatically improving system responsiveness.

Exascend Rugged Feature Suite

• Secure Firmware Update
• Tamper Proof Firmware Encryption
• Firmware Rollback Protection
• Optional Power Loss Protection
• Write Protect
• pSLC support
• Industrial Temperature Range
• Enterprise Performance, High QoS, Low Latency
• Fix Major BOM (Controller/Flash/Firmware)

Exascend Deep Customization Service*

Exascend’s platform-based technology enables deep customisation to drive value-add services. The company provides engineering support on further performance, power, thermal optimisations and security, vendor unique features on PI3 / SI3 products. Sample available now.

Optional Value-Add Features

• Thermal, performance and power budget tuning
• Configurable capacity and provisioning
• Configurable DWPD (drive writes per day) for extended endurance and life
• Customisable LED status lighting
• Customiseddrive SMART status and telemetry data
• Write protect or read-only mode for security purpose
• Integration support of drive life monitoring
• Rugged Erase Trigger with Quick Erase and Sanitise Erase
• Custom form factor and connector interface
• Fixed major BOM (Controller / Flash / Firmware)
• Optional leaded SMT process
• Exclusive factory data recovery service

Target Applications

• Factory Automation
• IoT Gateway, Transportation
• Edge Server
• Medical Equipment
• Telemetry Devices
• 5G Telecommunication
• Autonomous Driving
• Surveillance

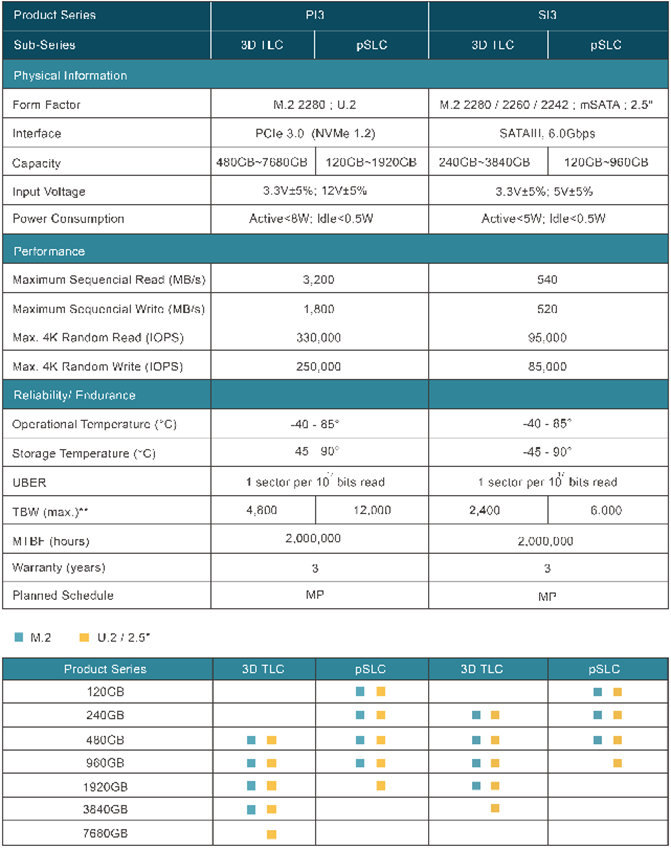

Product Specification

For more information, click here.
