Electric ships: battery behemoths

• Global weighted-average plug-in car (BEV + PHEV): 37kWh
• Pure electric car in the US: 67kWh
• Pure electric bus in China: 210kWh
• Long-haul Truck (expected): 600 - 1000kWh

Ellen - 4300kWh pure-electric ferry in Denmark (In-service)

'Ellen' is a landmark pure-electric ferry project operating in the Danish part of the Baltic sea. Taking five years to build, it successfully completed its 10-month stretch of sea trials in June 2020. The project was partially funded by the EU horizon 2020 project, costing a total of €21.3m of which the EU supplied €16m.

It has a huge 4300kWh battery supplied by Leclanché (20 strings each with four stacks, 80 stacks in total) enabling 21.4 miles of range. It also has a 4MW charging rate, allowing for nearly 1C charging. It is estimated the ferry will reduce CO₂ emissions by 2000 tonnes, NOx by 41.5 tonnes and SO2 by 1.35 tons annually.

Stena Jutlandica - 50,000kWh hybrid ferry in Denmark

The ferry operator Stena Line will install a 1000kWh battery system on the 'Stena Jutlandica', which operates between Gothenburg, Sweden and Frederikshavn, Denmark. However, this is only phase 1 of the project (allowing electric operation of bow thrusters and maneuvering when berthing in port), and a fraction of what will come.

In phase 2, a 20,000kWh battery pack will be connected to the propellers allowing for a 10-mile pure electric range; in phase 3, the battery capacity will be further expanded to a behemoth 50,000kWh, enabling roughly 50 miles of pure-electric range (the distance between Gothenburg and Frederikshavn).

Port Liner - 6720kWh inland barges in the Netherlands

In 2018, Port-Liner announced it would roll-out up to 11 pure electric inland barges for the ports of Amsterdam, Antwerp, and Rotterdam. Each was planned to carry up to four 1680kWh Li-ion battery containers, implying a maximum 6720kWh system. A containerised battery design lends itself to a battery-swapping business model, helping with the issue of shore-side mega-watt charging.

Unfortunately, the original (and ambitious) project was canceled after 5 million euros of spending, but scaled-back plans for a flow-battery version are now in place, with the first prototype planned for release later this year.

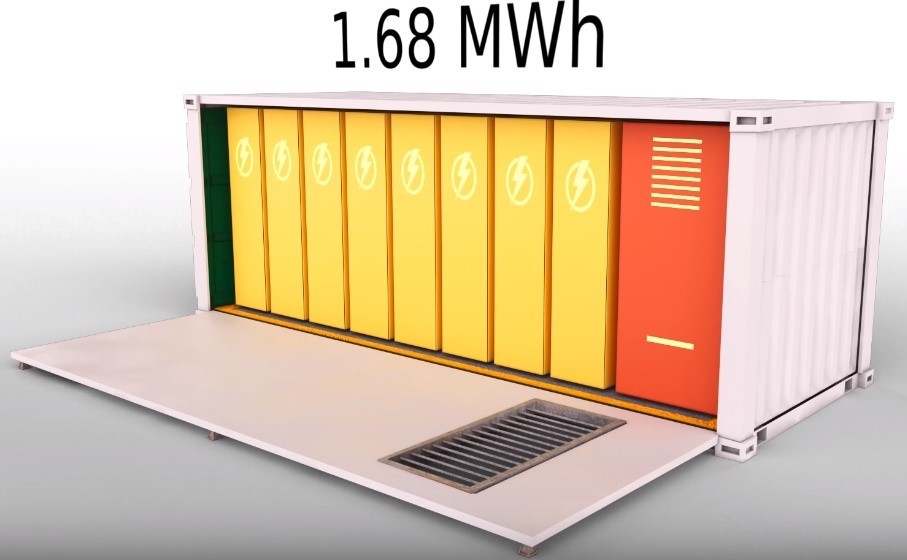

Port liner containerised battery system. Image source: Port Liner

Project e5 - 4000kWh pure electric tanker in Japan

The first sea-going pure electric and autonomous tanker, the e5 project, is being developed for Japan by Asahi Tanker (e5 stands for electrification, environment, evolution, economy and efficiency). Few details are known, but IDTechEx learned from the company that the 60-metre long ship would hit the water by 2022 with a 4000kWh battery enabling an 80-mile range.

Guangzhou Tanker - 2400kWh inland tanker in China

The first pure electric container ship in the world was launched in China in November 2017, ironically to transport coal. According to China News, the powertrain is equipped with a mixture of supercapacitors and lithium-ion batteries for a total energy capacity of 2400kWh. The powertrain reportedly enables a range of 50 miles on a single charge.

The vessel currently travels inland down the Pearl River in Guangdong Province, where new emission control areas came into force in January 2019. Both shipyards where it will operate are equipped with massive charging systems that can reportedly charge the boat's battery pack in just two hours (1.2MW charging), which is about the time it takes to load and unload the ship.

AIDAperla - 10,000kWh hybrid cruise ship in Italy

Corvus Energy will supply AIDA Cruises with a 10,000kWh Li-ion battery system, to be retrofitted onto the AIDAperla during 2020 (a cruise ship capable of transporting over 4000 people). The battery will allow zero-emissions operation whilst berthing in ports and save fuel with peak-shaving during hybrid operation when out at sea. This project currently holds the record for the largest battery pack ever ordered.
